The USB TTL Serial cables are a range of USB to serial converter cables which provide connectivity between USB and serial UART interfaces. A range of cables are available offering connectivity at 5V, 3.3V or user specified signal levels with various connector interfaces. All cables feature an FTDI FT232R device integrated within the cable USB type ‘A’ connector, which provide access to UART Transmit (Tx), Receive (Rx), RTS#, CTS#, VCC (5V) and GND connections. All cables are fully RoHS compliant and are FCC/CE approved. All cables are 1.8m in length. Still Game Complete Torrent. • • Part Number Description Cable Details Link to Datasheet Buy from FTDI TTL UART cables supporting range of voltage I/O levels with wire-ended output TTL-232RG-VSW3V3-WE Supports +3.3V based TTL level UART signals and +3.3V / 50mA power output. Wire ended 6 core, 5mm UL2464 24 AWG output TTL-232RG-VSW5V-WE Supports +5V based TTL level UART signals and +5V / 450mA power output TTL-232RG-VREG3V3-WE Supports +3.3V based TTL level UART signals and +3.3V / 250mA rated power output.

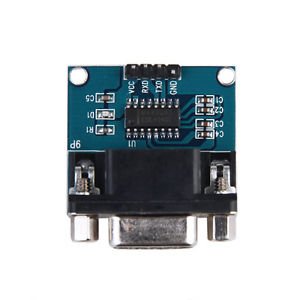

Serial Programming/RS-232 Connections. Via such an LED and a 680 Ohm resistor in serial to GND. For connecting the TX, RX, GND of RS-232 to the 4 pins of. Are there standard RS232 cable color codes for TX, RX & GND? The 3 lines: TX, RX, and GND. Isolation protects the RS-232 ports from voltage surges. The ISO-232-3P9 has a db-9 female connector on the RS-232C serial. The 3 lines: TX, RX, and GND. Isolation protects the RS-232 ports from voltage surges. The ISO-232-3P9 has a db-9 female connector on the RS-232C serial.

TTL-232RG-VREG1V8-WE Supports +1.8V TTL level UART signals and +1.8V / 100mA rated power output. TTL-232RG-VIP-WE Cable features voltage reference input for setting UART signalling levels.

TTL-232R-3V3-WE Version 1 cable. Supports +3.3V UART signalling and +5V/75mA power output.

TTL-232R-5V-WE Version 1 cable. Supports +5V based UART signalling and +5V/75mA based power output.

Connector based cables TTL-232R-3V3 USB cable with 6 way 0.1' pitch single inline connector with +3.3V signalling. 6 way, 0.1' pitch single inline connector TTL-232R-5V USB cable with 6 way 0.1' pitch single inline connector with +5.0V signalling. TTL-232R-3V3-2mm USB cable with +3.3V based UART output on 2mm connector. Designed for use with FTDI VDRIVE2 and VMUSIC2 modules. 8-pin, keyed 2mm pitch connector TTL-232R-3V3-AJ Cable with audio jack connector with +3.3V based TX, and RX signalling.

3.5mm audio jack output. Connector configuration: tip - TX, ring - RX, sleeve - GND TTL-232R-5V-AJ Cable with audio jack connector with +5V based TX and RX signalling. PCB assemblies TTL-232R-3V3-PCB PCB only. Supports +3.3V UART signalling and +5V/75mA power output. No cable – USB connector with PCB only TTL-232R-5V-PCB PCB only. Supports +5V UART signalling and +5V/75mA power output.
